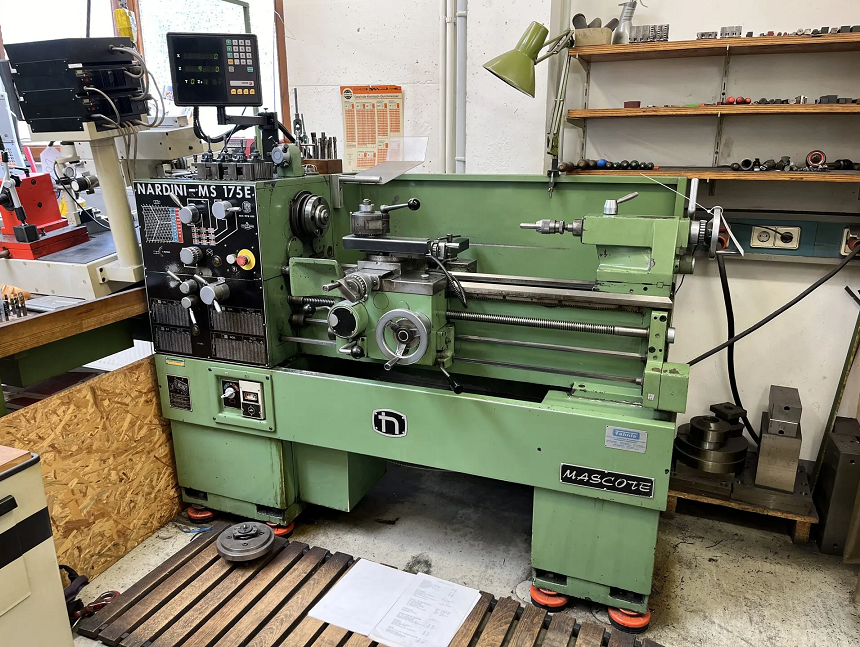

NARDINI MS 175E Spindle Lathe – Precise, Reliable & Easy to Use

NARDINI MS 175E Spindle Lathe

Compact Turning Capacity

The NARDINI MS 175 E Lead and Draw Spindle Lathe is a practical and reliable machine designed for precision work. It offers a centre width of 800 mm, making it ideal for medium-sized components.

The machine has a turning diameter of 350 mm over the bed and 310 mm over the longitudinal slide, allowing flexibility for different workpieces. The 200 mm turning diameter over the cross slide makes it suitable for detailed and accurate machining tasks.

---

Smooth Spindle Performance

This spindle lathe machine for sale is equipped with a wide speed range for different applications.

• Spindle speed: 25 – 2000 rpm
• Centre height: 175 mm

This allows you to switch easily between slow, controlled cuts and faster finishing operations.

---

Accurate Feed and Movement

The lathe provides precise control for consistent results.

• Longitudinal feed range: 0.042 – 0.929 mm/rev
• Lead screw pitch: 6 mm

These features help maintain accuracy during turning and threading operations.

---

Cross Slide and Tooling

• Cross slide stroke: 195 mm
• Top slide stroke: 135 mm
• Max tool size: 16 x 16 mm

This setup allows for smooth movement and easy tool handling during machining.

---

Tailstock Specifications

The tailstock provides strong support for longer workpieces.

• Quill diameter: 40 mm
• Taper: MK3
• Quill stroke: 130 mm
• Cross adjustment: 10 mm

This ensures stability and improved accuracy during operation.

---

Solid Machine Construction

• Bed width: 220 mm
• Bed height: 300 mm

The sturdy design helps reduce vibration and improves overall machining quality.

---

NARDINI MS 175E Spindle Lathe Ideal Applications

This lead and draw spindle lathe is suitable for:

• General machining
• Shaft and component turning
• Maintenance and repair work
• Small to medium workshop production

---

NARDINI MS 175E Spindle Lathe Summary

The NARDINI MS 175 E Lathe is a reliable and easy-to-use machine for everyday machining tasks. It offers good precision, smooth operation, and solid construction.

If you are looking for a spindle lathe machine for sale, this model is a cost-effective and practical option for workshops that need consistent and accurate results.
