Description
CNC Cylindrical Grinding Machine – High Precision, 5-Axis Capability & Advanced CNC Control

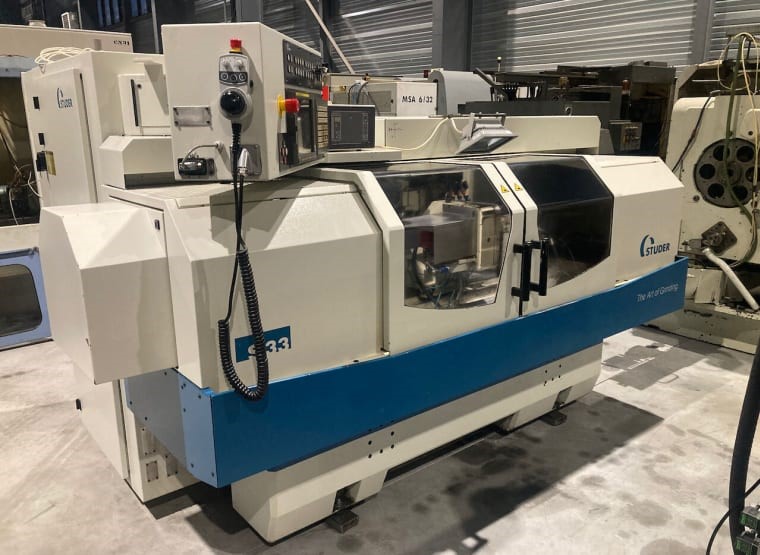

CNC Cylindrical Grinding Machine
The Cylindrical Grinding Machine is a high-end solution for precision external and internal grinding. Known for its accuracy, flexibility, and Swiss engineering quality, this machine is ideal for demanding applications in modern manufacturing environments.
High Precision Grinding Performance
The STUDER S33 is built for exceptional accuracy and repeatability.
- Distance between centers: 650 mm
- Centre height: 175 mm
- Roundness accuracy: 0.0004 mm
This level of precision makes it perfect for high-tolerance components.
Advanced B-Axis for Flexible Grinding
- B-axis rotation: 360°
The full rotation of the B-axis allows for complex grinding operations, including multi-angle and contour grinding in a single setup.
Smooth and Accurate Axis Movement
Longitudinal Slide:
- Max travel: 800 mm
- Speed: 0.001 – 10,000 mm/min
- Resolution: 0.0001 mm
Cross Slide:
- Max stroke: 285 mm
- Speed: 0.001 – 5000 mm/min
- Resolution: 0.0001 mm
These precise movements ensure smooth operation and excellent surface finishes.
Powerful and Flexible Headstock
- Speed range (rotating centre): 1 – 1500 rpm
- Speed range (fixed centre): up to 1000 rpm
- Spindle taper: MK5
This allows the machine to handle a wide variety of workpieces with ease.
Sub Headstock Details
- Taper: Morse 3
- Sleeve diameter: 50 mm
- Sleeve stroke: 35 mm
This ensures stable support for longer workpieces during grinding.
Advanced CNC Control System
The machine is equipped with a FANUC 21i-TB CNC control, providing reliable, precise, and user-friendly operation. It supports complex programming and repeatable high-quality results.
Cylindrical Grinding Machine Additional Equipment Included
- Support with motors for internal grinding device
- Sensitron measuring device
- External pump tank with paper filter
These features improve efficiency, cooling, and overall grinding performance.
CNC Cylindrical Grinding Machine Ideal for Precision Grinding Applications
This CNC cylindrical grinding machine for sale is perfect for:
- Precision engineering
- Automotive and aerospace components
- Tool and die manufacturing
- High-accuracy production work
CNC Cylindrical Grinding Machine A Premium Grinding Solution
If you are looking for a cylindrical grinder, the STUDER S33 offers top-level performance. It combines advanced technology, flexibility, and outstanding accuracy.
Ready for High-End Production
The Grinding Machine is designed for demanding applications where precision matters most. It is a reliable and powerful machine ready to deliver consistent, high-quality results.
